Transparent LED Display AHT Series

Outdoor Digital Signage

Transparent Rental LED Display
AHT Series

AHT series for outdoor rental events, cabinet size 1000x500x65mm,cabinet weight: 7.9kg, transparency rate 42%,refresh rate 3840Hz

AHT Series Features Detail

  • Unique design:45° hypotenuse angle, radian lock design, can be spliced at right angles to meet more design creativity customization.
  • Ultra-high transmittance:With a transmittance of 70%, it ensures the lighting requirements and viewing angle range of lighting structures such as between floors, glass facade windows, etc.
  • Wider perspective:Ultra-wide viewing angle, the image is vivid and vivid without dead ends
  • High-qualit die-casting aluminum: Thin and light design, adopting die-casting aluminum cabinet , Weight only 7.9Kg, thickness only 65mm,making the whole screen light, easy to lift, thin, transparent, and easy to maintain
  • Lowenergyconsumption:No need for traditional cooling system and air conditioner to dissipate heat, 38% energy saving than ordinary LED display

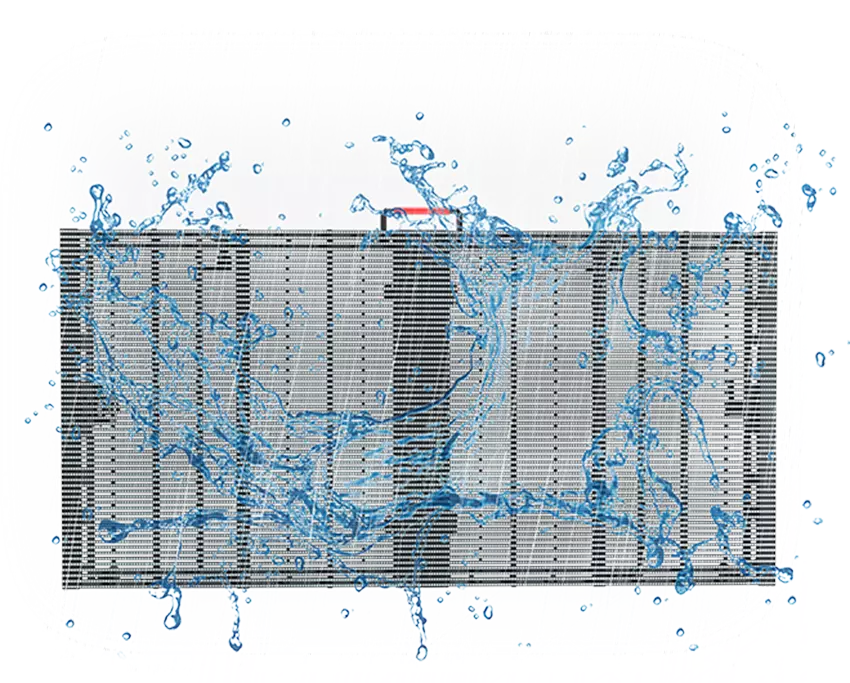

  • High protection:With a high waterproof rating of IP66, it can calmly meet the needs of various outdoor application scenarios and solve your worries.

Factory in China

Ultra-Light

Easy maintenance

P3.9*7.8

Fast installation

AHT Series Advantage

Degree of protection IP65, Super light, super thin, super high transparency, high intensity item and easy maintenance. Whole aluminum frame design, 80mm thickness, light and wind transparency, play video or picture with high-definition.

High Protective Performance

Aluminum material, high temperature durability, fast heat-dissipation.The whole product can Reach 5VB fireproofing level. Full sealed die-casting aluminum module chassis. Water proof connectors(between modules), Drain hole is designed at the bottom of the panel to prevent ponding.

Safety Harness Design

Each LED module is equipped with a safety harness to prevent the module from falling and hitting people.

Transparent LED Display
Parameter Table

 Product Model Mesh O3.9
  LED Type SMD1921
  Pixel Pitch 3.9*7.8mm
  Pixel Density 65,536 dots
   Brightness (cd/㎡) 4500~7500

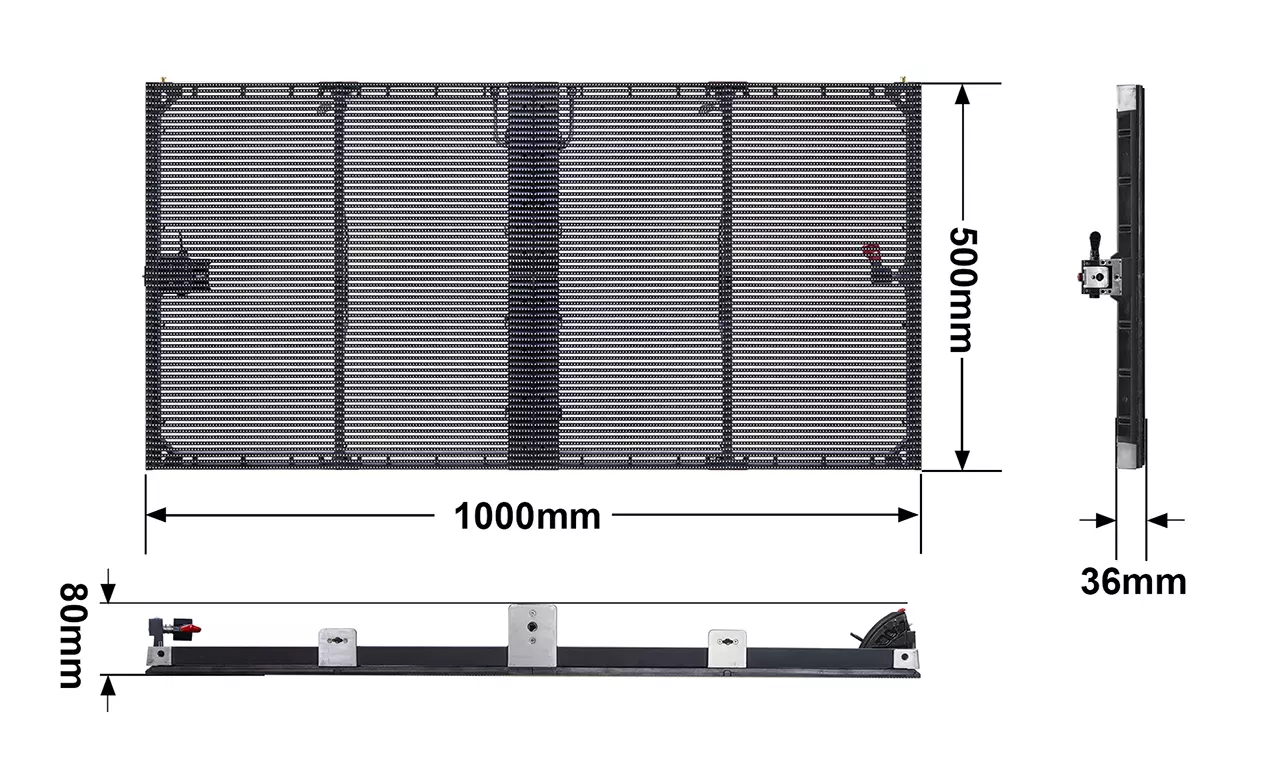

Cabinet Size W1000xH500mmxD65mm
Module Size
500x125mm
Cabinet Weight
7.9Kg
Maintenance
Full rear maintenance
Ingress Protection
IP65/IP54
Installation Mode
Flat/arc/right angle
Viewing Angle
H160°/ V160°
Refresh Rate
1920-3840HZ
Contrast Ratio
14~16bits
 Operating Life
≥100,000hours
