LED Roll-Up Displays

Rolling Up Interactive LED Display

What an LED roll-up display screen?

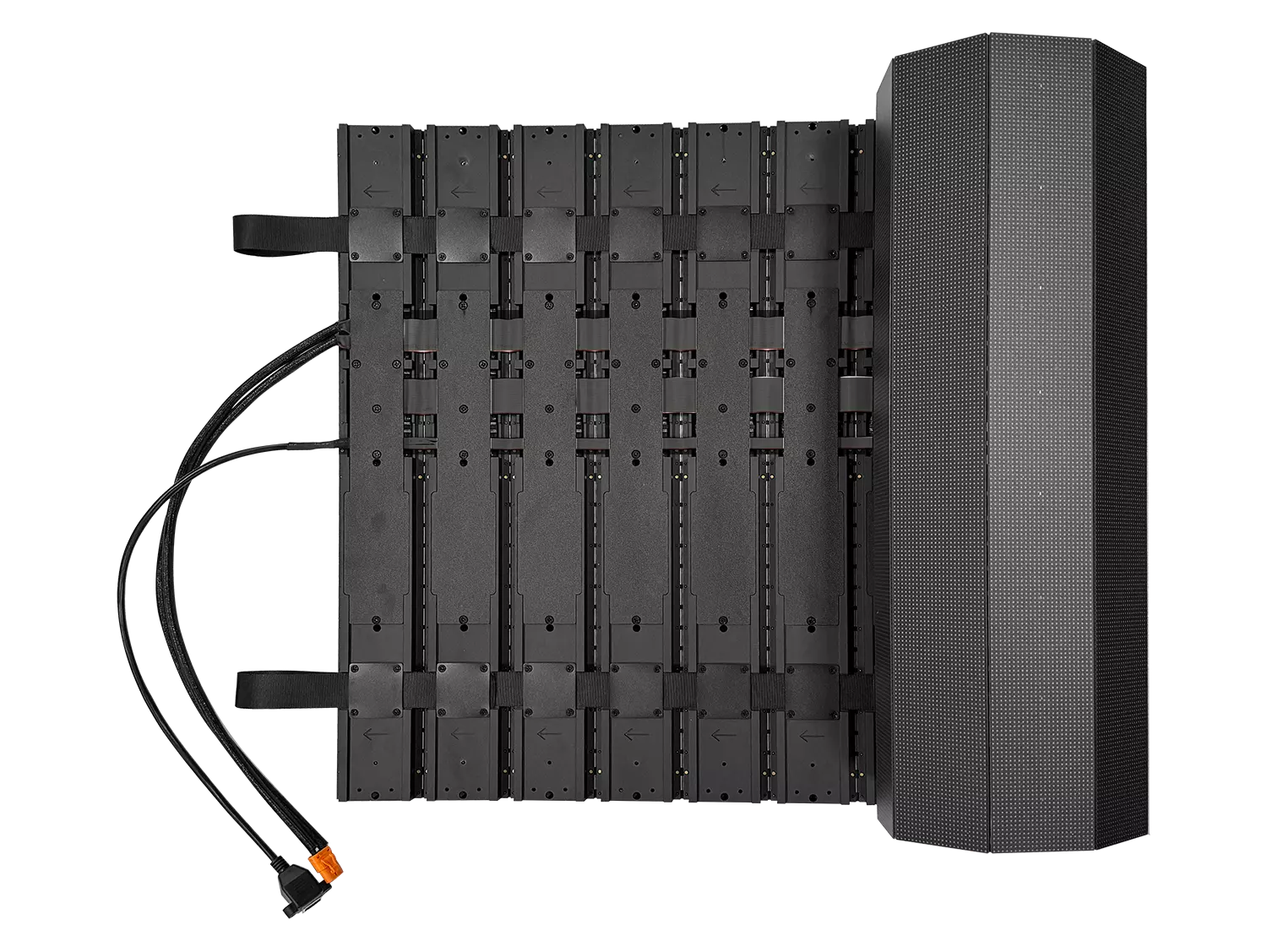

An LED roll-up display screen (also known as a rollable LED display or flexible LED roll screen) is a type of large-format digital display that can be physically rolled up like a mat or curtain when not in use, and then unrolled for operation.

  • Flexible circuit boards and soft rubber masks instead of hard PCBs
  • Small, pliable LED modules that can bend without breaking
  • Often a magnetic or latch-based mounting system for installation
Get a Free Quote
led rollable display screen
rolling led rollable displays
Rolling Up Interactive LED Display

Innovative LED Display Products

LED Rolling Up Display is a new generation of innovative LED Display products, in addition to the traditional display, all the features and technical features, its excellent structure design makes it roll up like paper, it has the appearance of ultra-thin and ultra-light weight, is the ideal alternative to traditional display, suitable for all traditional display applications.

Get a Free Quote

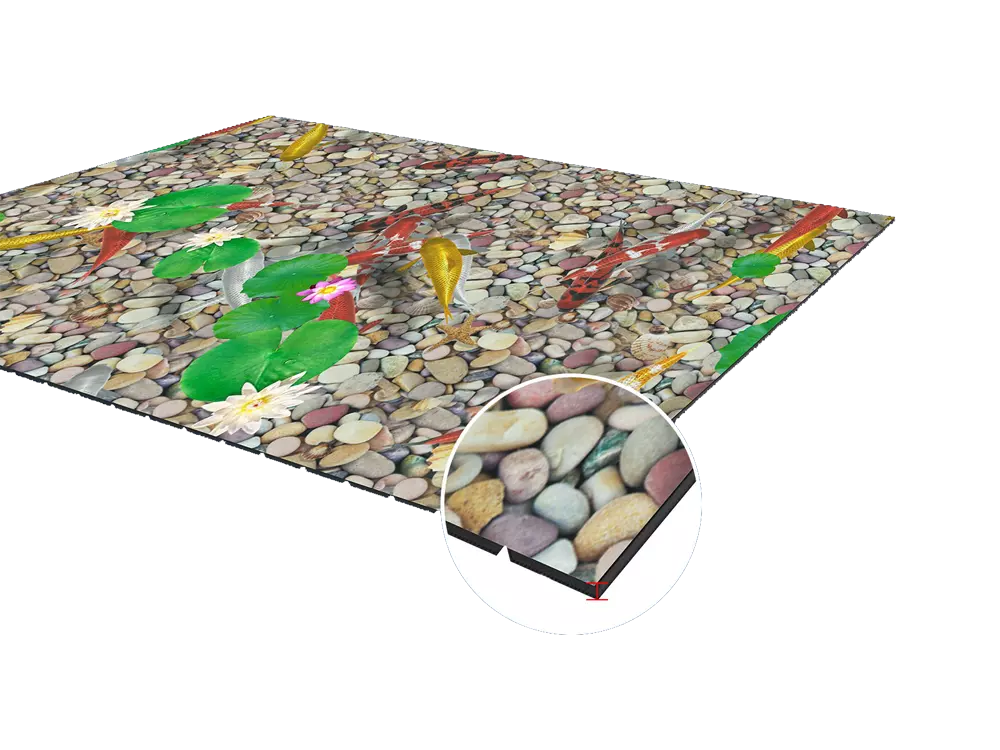

GOB LED Technology

Surface safty with IK10 anti-collision grade and IP65 waterproof grade, also with non-slip mat and anti-reflection. And high visual performance (with high contrast LED for uniform visual performance in black) are considered.

Creative LED Screen

Ultra-light and Ultra-thin

15 KG/Sqm weight and 10 mm thickness make easy to install and carry, wich can simplify the design of supporting structure to design better artistic effect.

Aluminum module case

Aluminum case adopts strething process, which make sure the accurate size and have the best heat dissipation from the LED.

Fast installation and easy
maintenance

Its simple structure allows for easy installation and quick maintenance.

LED Roll-Up Display Screen
PARAMETER TABLE

  Model No. P0.78 P0.97 P1.25 P1.56 P1.95 P2.6 P3.91
  Pixel Pitch(mm) 0.78mm 0.976mm 1.25mm 1.56mm 1.95mm 2.6mm 3.91mm
  LED Configuration SMD0606 SMD0606 SMD1010 SMD1010 SMD1010/1415 SMD1415/1515 SMD2121
  Pixel density(dots/m²) 1638,400 1048,576 640,000 409,600 262,144 147,456 65,536
  Module resolution(pixels) 640x80 512x64 400x50 320x40 256x32 192x24 128x16
  Brightness(cd/m²) 400 400 400 600 600 600 600
  Max power consumption(w) 570 540 450 510 480 480 480
  Avg power consumption(w) 190 180 150 170 160 160 160
  Scanning method 1/80s 1/64s 1/50s 1/40s 1/32s 1/24s 1/16s
  Moudle size（mm）
500x62.5x17nn(±0.5mm)

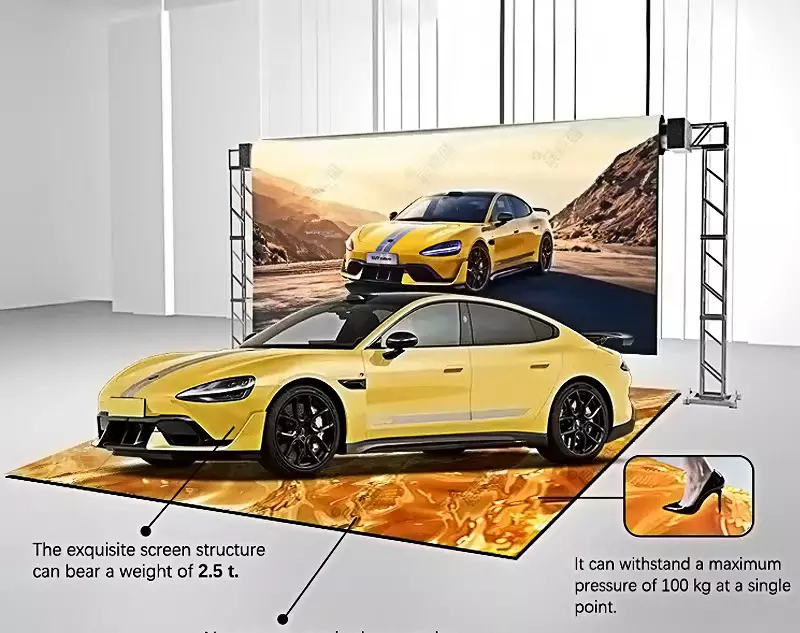

  Maximum load bearing
1000kg/m²
  Refresh rate
3840-7680Hz(optional)
  Protection level
IP54/IP21
  Installation method
Floor/Rolling/(optional）
Swipe left or right to view more content
