Outdoor LED Displays AFH series

Outdoor Digital Signage

Outdoor Narrow Pixel LED Display
AFH Series

  • Outdoor Fixed LED Display Screen Solution
  • Dimension: 500x1000x80mm
  • Pixel Pitch Outdoor: 2.9mm, 3.9mm, 4.8mm
  • Applications:Window Screen, Digital Signage System, Bus Station, Arena Display
  • Business Advertising Signs, Airport, etc.

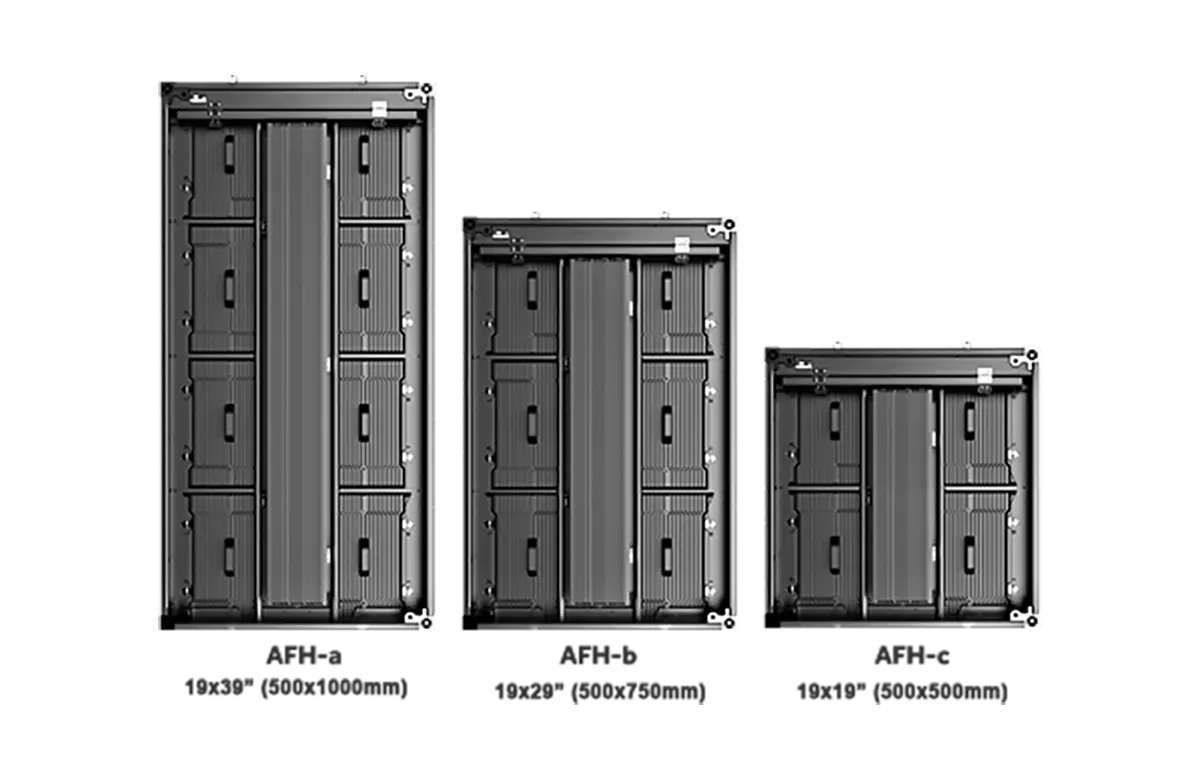

Flexible Size, Light Weight

500mm x 1000mm, 500mm x 750mm, 500mm x 500mm Weight: 34KG/㎡ Thickness: 80mm

Factory in China

Easy maintenance

P2.9-4.8mm

Fast installation

Permanent Robust Clarity

A cost-effective high-resolution fixed outdoor LED display with robust functionality Its high pixel density provides a fully scalable solution for close viewing distances and increased image detail in a robust IP67 rated enclosure that ensures long-lasting operation in a variety of weather conditions.

5VB Fireproof

Die-casting Aluminum module High temperature durability Corrosion protection

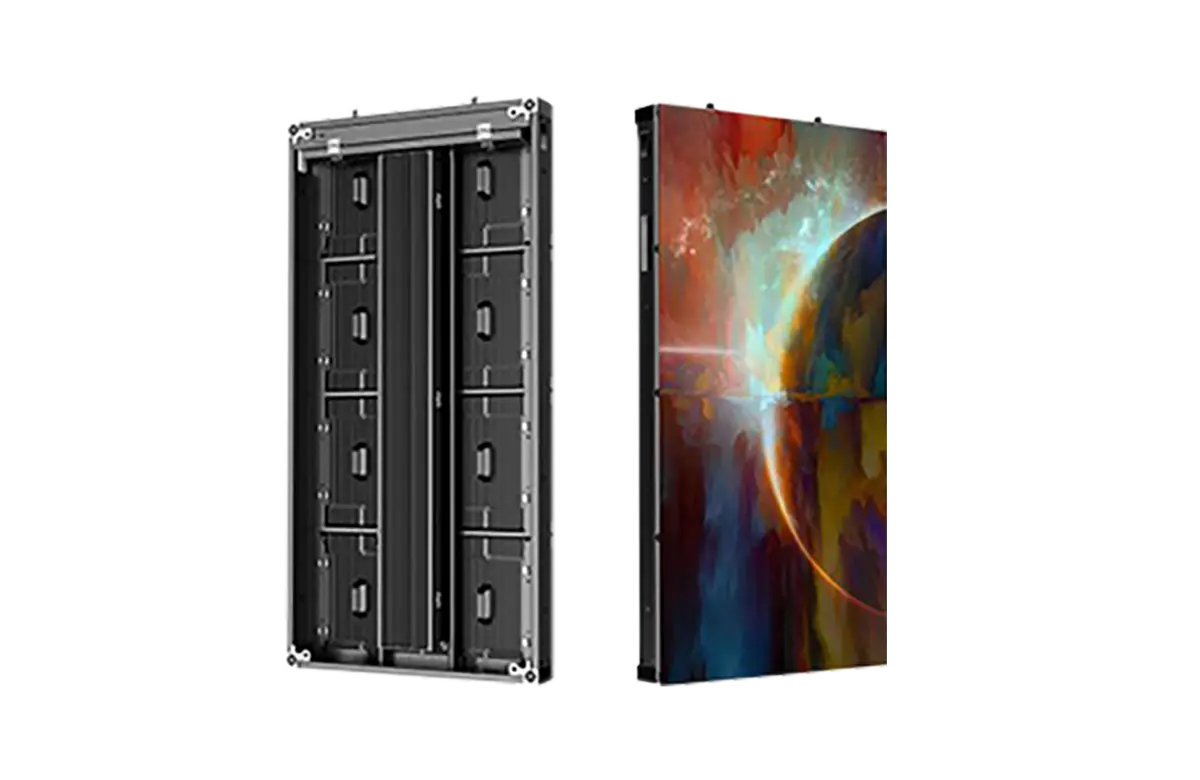

True weatherproof solution

Its open-frame design provides a lightweight solution with enclosed power/data connections for a true weatherproof solution.

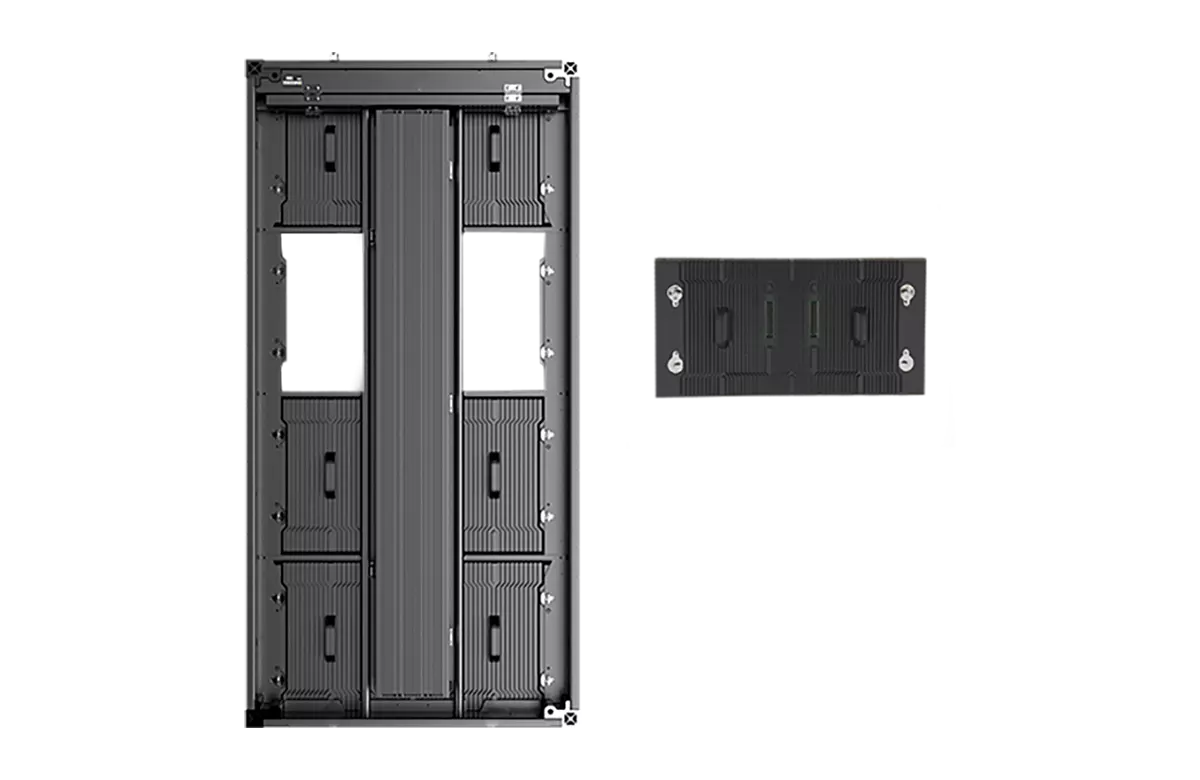

Aluminum LED modules integrate a heat-sink chassis design to provide fanless cooling with optimal efficiency, and feature front & rear accessible twist locks for a weather-tight seal to provide easy access on both sides.

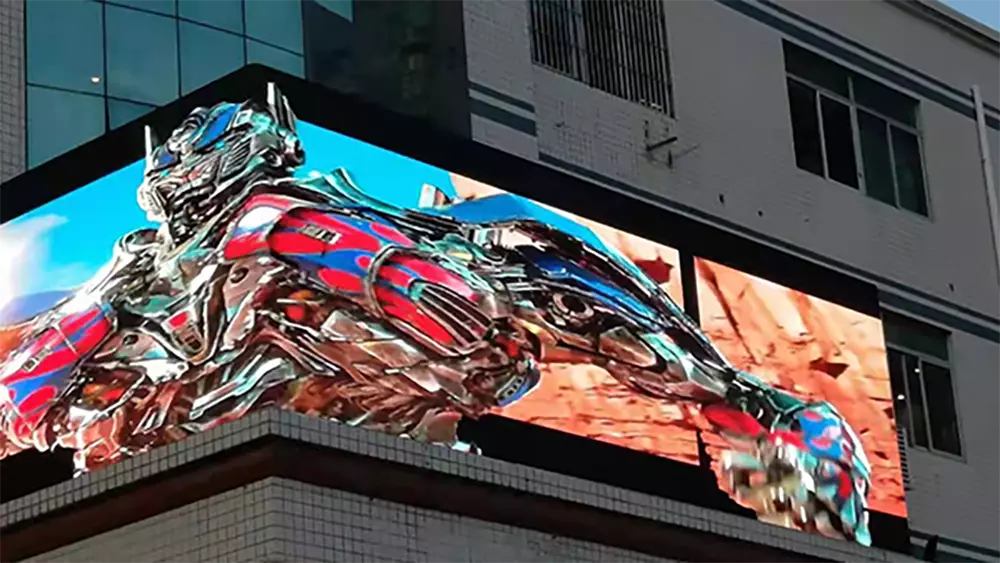

Energy Saving LED Display
Parameter Table

AFH Specifcations
  Model AFH Series
  Pixel Pitch 2.9,3.9,4.8mm
  Cabinet size 500x1000x80mm
  Cabinet weight 28±0.5kg
  Brightness 6000-9000nit
  Color temperature 6500-8500K
  Refresh frequency 1920-3840HZ
 Working temperature -20~50℃
  Storage Temp/Humidity -30 - 60℃/10% - 60%
  Expected LED Lifetime (Max) 100,000 Hrs
  IP Rating IP65
