Rental LED Display AR Series

Indoor And Outdoor

Rental LED Display Products

  • Pixel Pitch:Indoor 1.9/2.6/2.9, outdoor 2.9/3.9/4.8
  • Indoor 1,000 nits with NationStar SMD, outdoor 4,000/4,500 nits with black SMD
  • Aluminum cabinet featuring lightweight and slim design Instant lock and module maintenance button
  • Scan ratio of 1:16 (indoor P2.6) and 1:8 (outdoor P3.9)

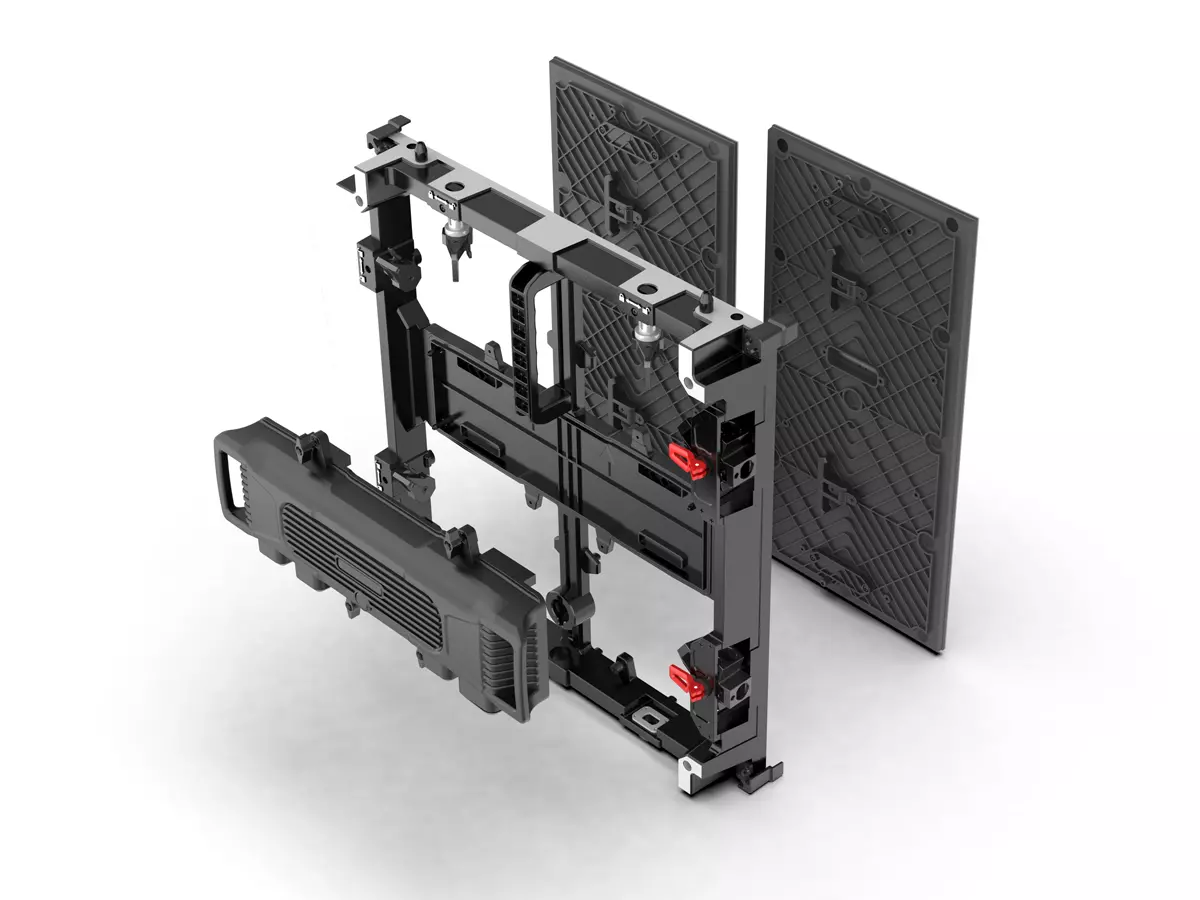

Modular Design

Module/ Power box/Cabinet frame Easy front & rear Maintenance

Factory in China

Ultra-Light

Easy maintenance

P1.9-3.91mm

Fast installation

Versatile Design

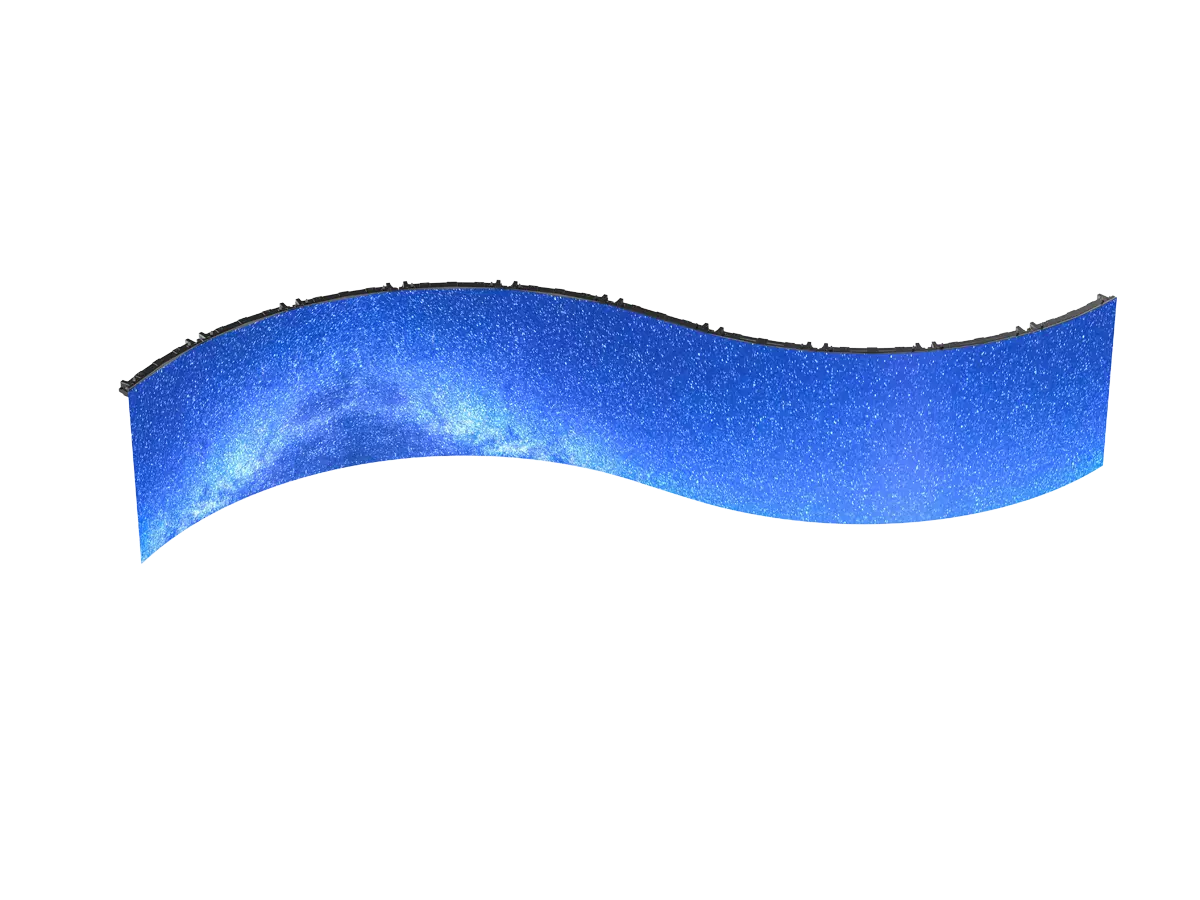

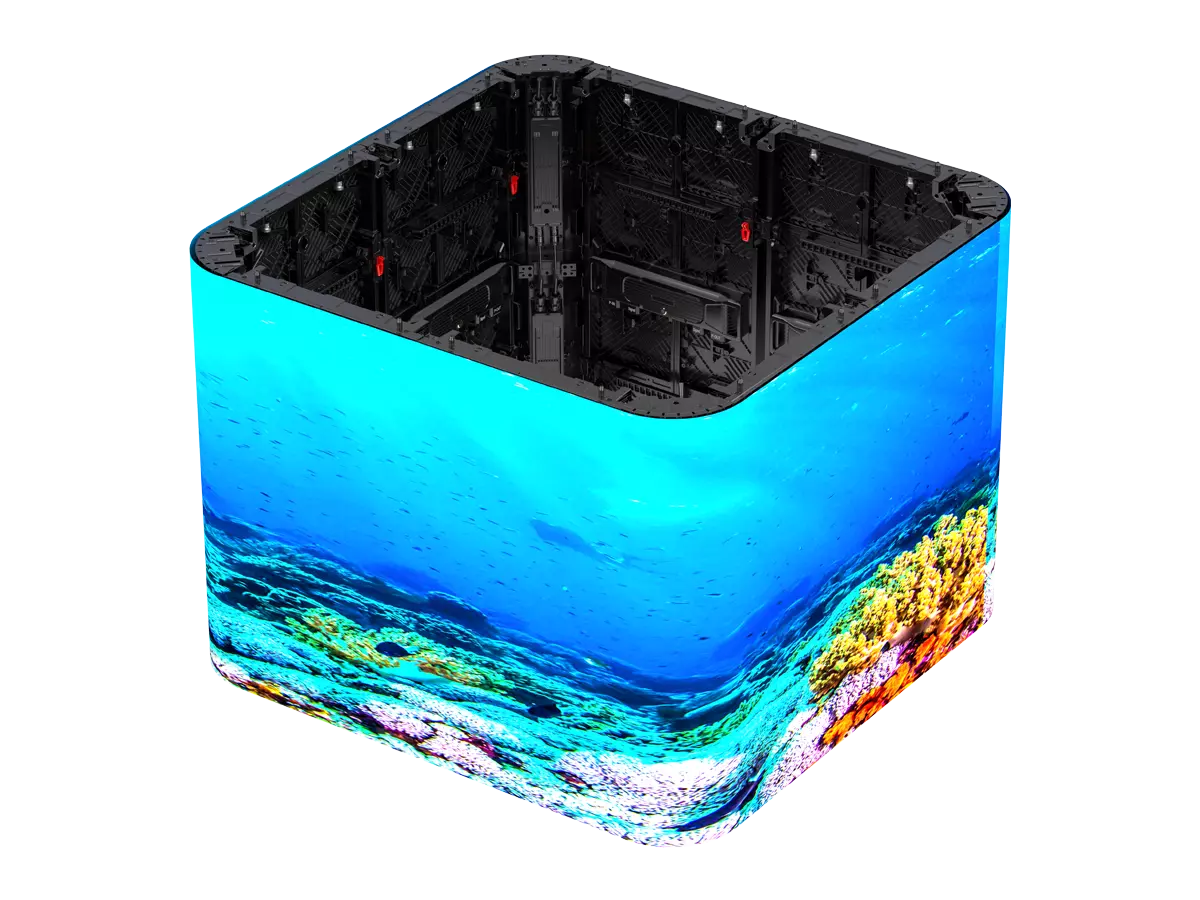

Excellent Curving Capabilities & R-Shaped cabinet for Perfect Seamless Cube

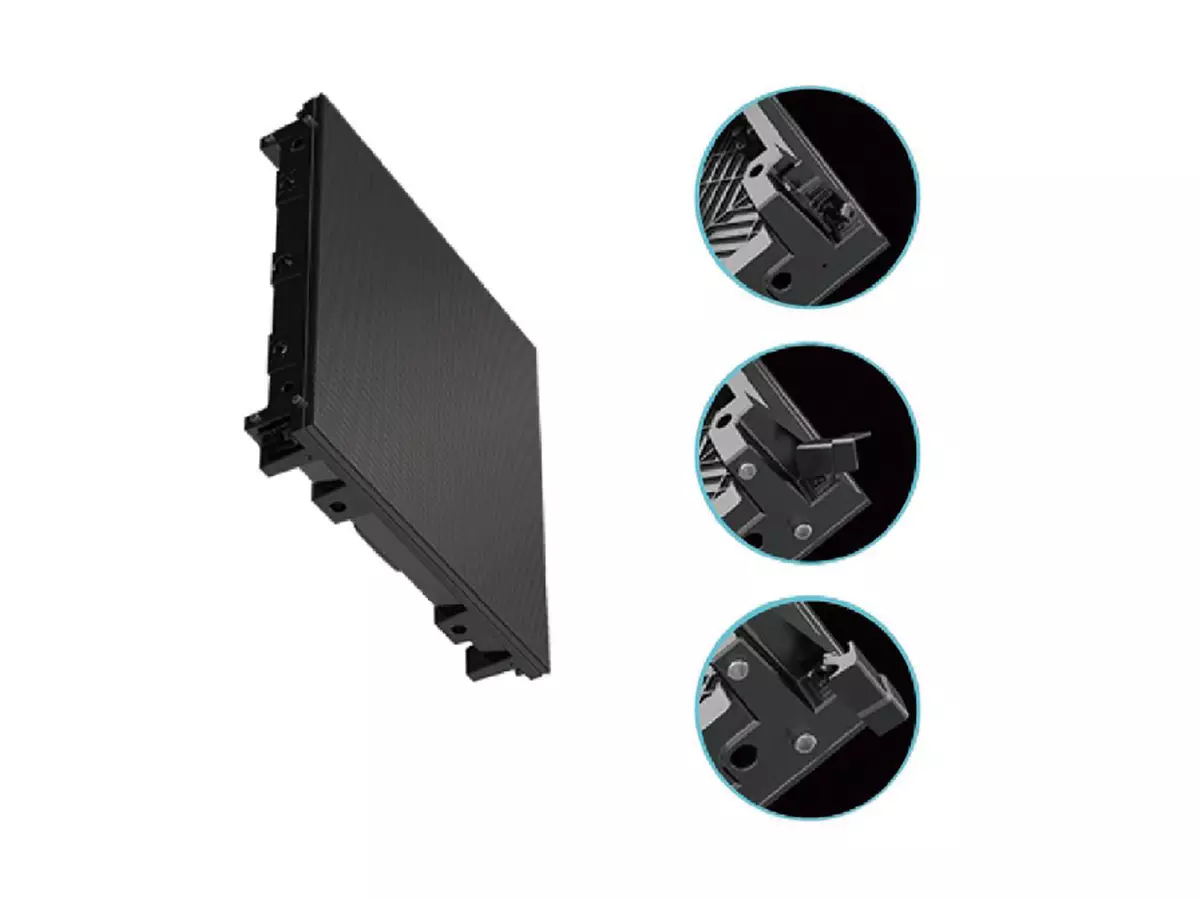

Corner Protection Design

Anti-collision design with flip-over protection and edge protrusion feet, weIl protection from LED damages

Easy & fast build design

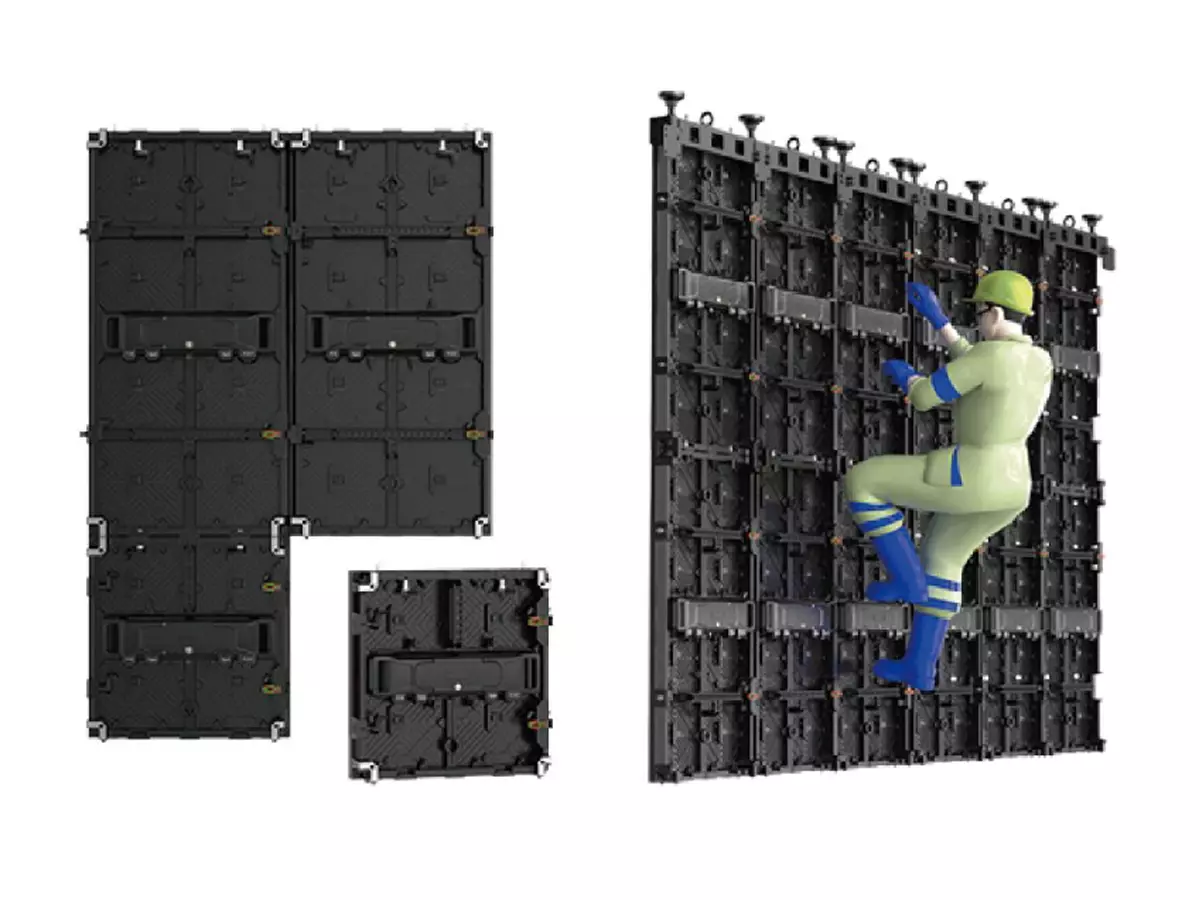

Robust cabinet frame and handler designed to be climbable

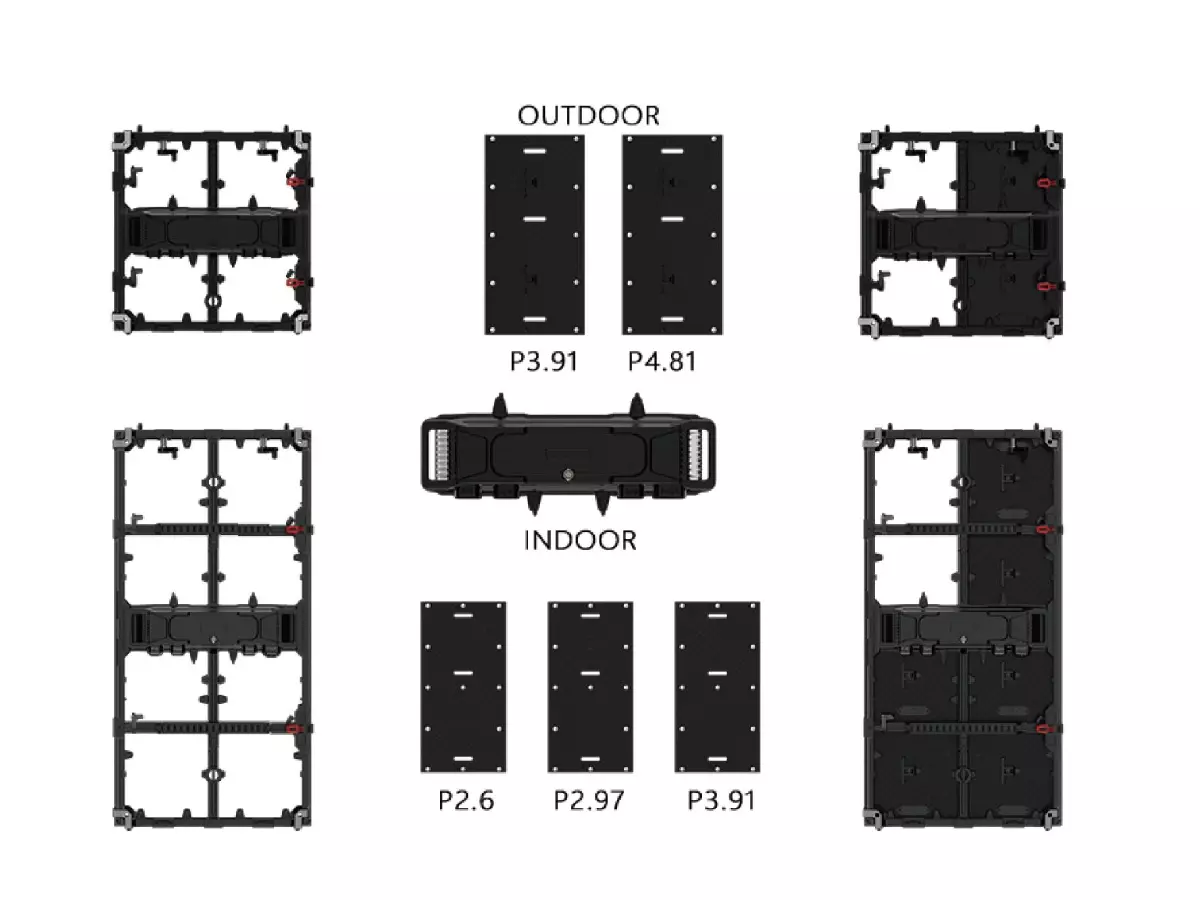

Platform Design

Universal module for small & big panel, easy service. indoor & outdoor in different pixel share one cabinet platfor

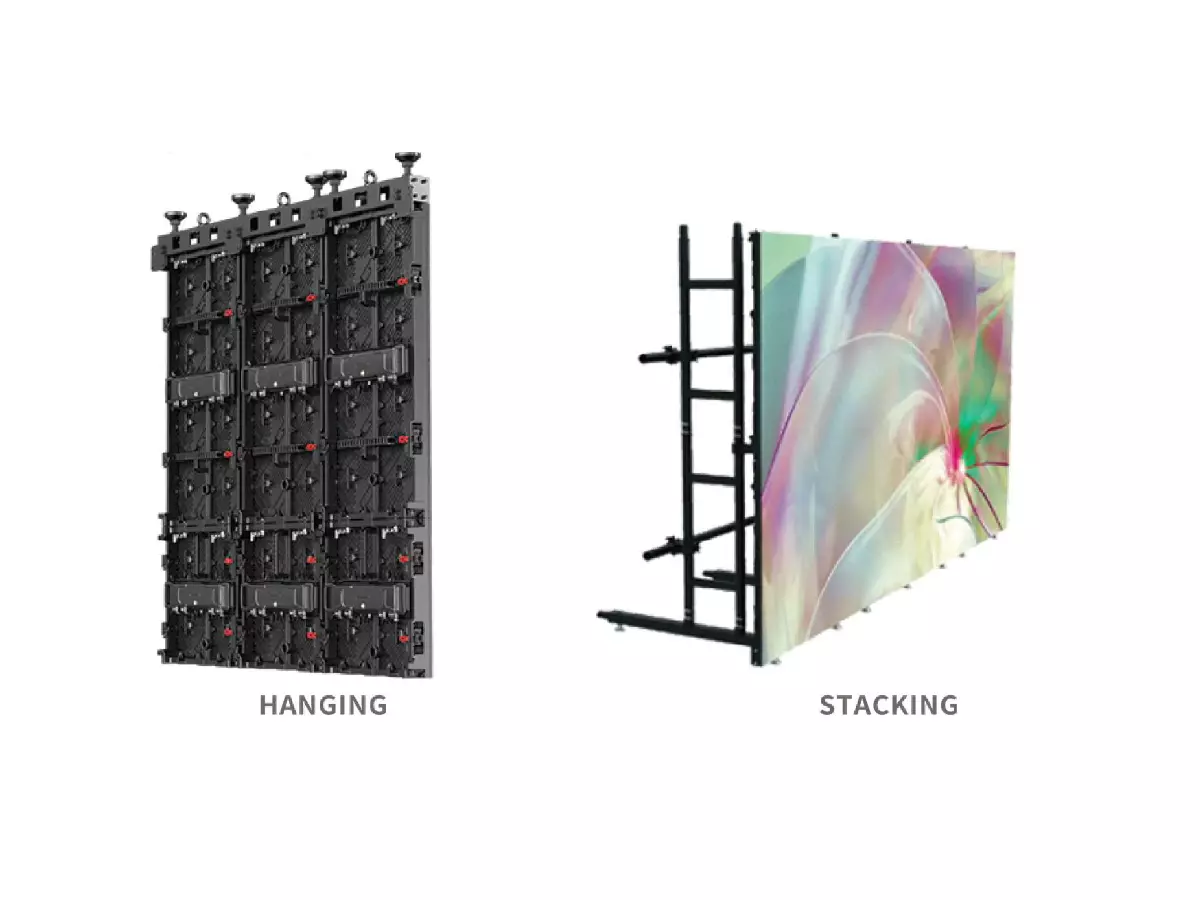

Various Installation capabilities

Universal module for small & big panel, easy service. indoor & outdoor in different pixel share one cabinet platfor

Touring solution

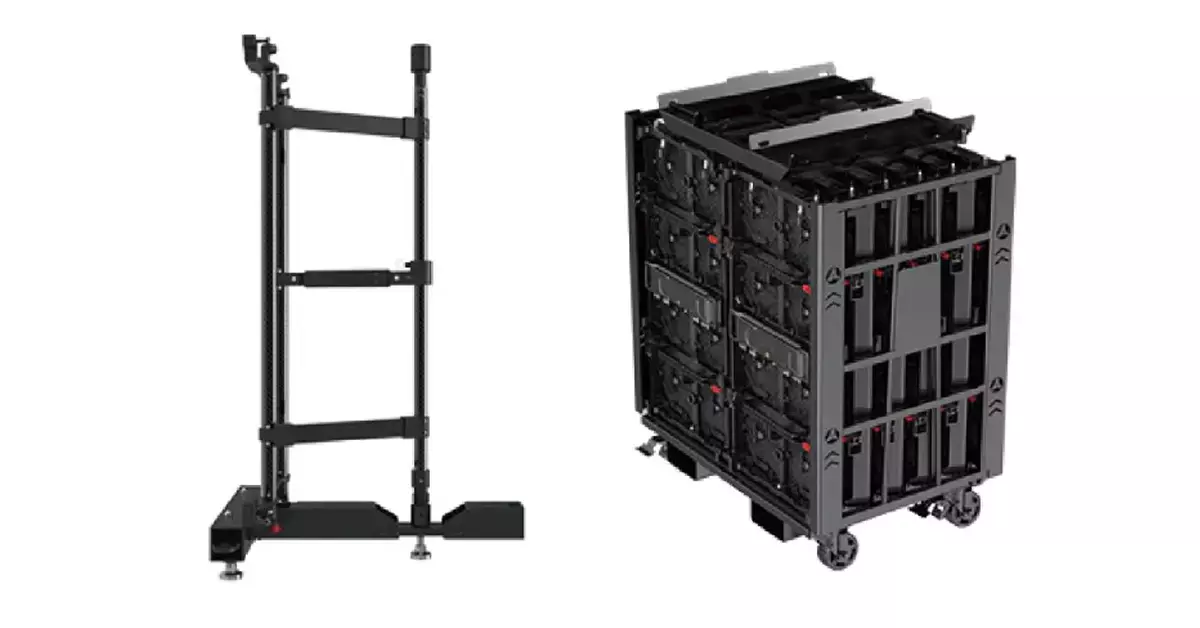

Integrated with Wind Bracing System and Touring dolly

LED Roll-Up Display Screen
Parameter Table

  Model No. Indoor P2.6 Indoor P2.97 Indoor P3.91
  Pixel Pitch(mm) 2.6mm 2.97mm 3.91mm
  LED Configuration SMD1515 SMD1515 SMD2020
  Pixel density(dots/m²) 147,4456 1112,896 65,536
  Module Size 250*500mm 250*500mm 250*500
  Module resolution(pixels) 96*192 84*168 64*128
  Cabinet Size

500*500*86mm 500*1000*86mm

 500*500*86mm 500*1000*86mm 500*500*86mm 500*1000*86mm
  Cabinet Resolution(Pixel) 192*192 168*168 128*128
  Cabinet Weight 8KG/12.5KG 8KG/12.5KG 8KG/12.5KG
  Brightness(cd/m²) 800-1000nits 800-1000nits 800-1000nits
  Max power consumption(w) 600W/㎡ 600W/㎡ 600W/㎡
  Avg power consumption(w) 200W/㎡ 200W/㎡ 200W/㎡
  Scanning method 1/24s 1/21s 1/16s
  Refresh rate
7680Hz
  Protection level
IP30
  Max Rigging
20 panels / 10 panels
Swipe left or right to view more content
  Model No. Outdoor P2.97 Outdoor P3.91 Outdoor P4.81
  Pixel Pitch(mm) 2.97mm 3.91mm 4.81mm
  LED Configuration SMD1415 SMD1921 SMD1921
  Pixel density(dots/m²) 112,896 65,536 43,264
  Module Size 250*250mm 250*500mm 250*500
  Module resolution(pixels) 84*84 64*128 52*104
  Cabinet Size

500*500*86mm

 500*500*86mm 500*1000*86mm

500*500*86mm/ 500*1000*86mm
  Cabinet Resolution(Pixel) 192*192 128*256 104*208
  Cabinet Weight 8.7KG 8.7KG/12.5KG 8.7KG/12.5KG
  Brightness(cd/m²) 800-1000nits 800-1000nits 800-1000nits
  Max power consumption(w) 750W/㎡ 750W/㎡ 750W/㎡
  Avg power consumption(w) 250W/㎡ 250W/㎡ 250W/㎡
  Scanning method 1/21s 1/8 & 1/11 & 1/16s 1/13s
  Refresh rate
7680Hz
  Protection level
IP65
  Max Rigging
20 panels / 10 panels
Swipe left or right to view more content
