Energy-saving AFS960 Series

Outdoor Digital Signage

Energy Saving LED Display

AFS960 Series is AlidenLED latest Common Cathode Aluminum Display with size of 960*960mm,high IP68 waterproof level. Unique panel design with 480*320mm size. Ultra low heat and power consumption, saving and excellent visual experience

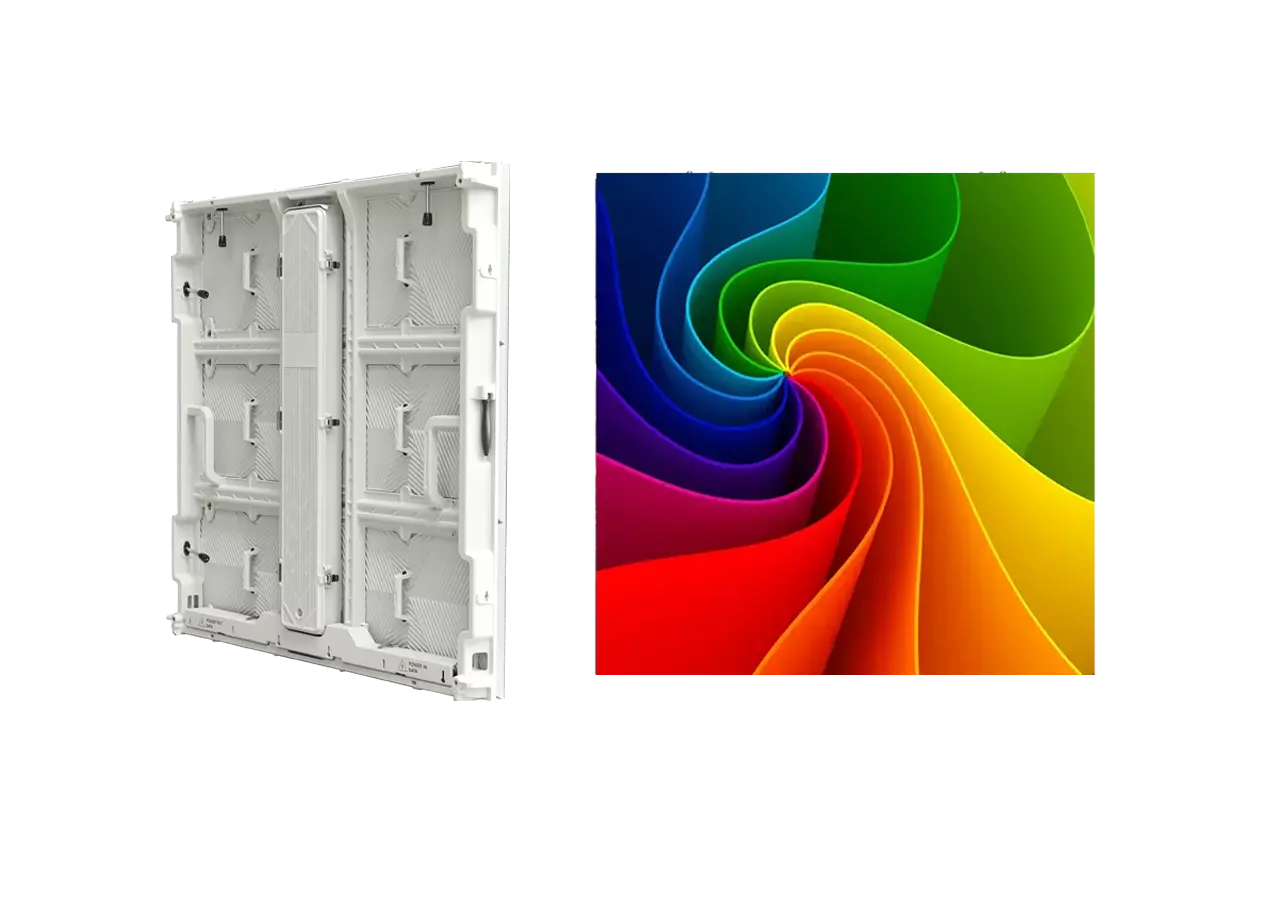

480*320mm Panel Design

Unique panel design with 480*320mm and 960*960mm cabinet size, Ultra thin thckness with 75mm design,Weight: 28KG/㎡ for Aluminum frame, 35KG/㎡ for mental frame More size 960*1280/960*960/960*640/1440*1280/ 1440*960mm is Available

Factory in China

Ultra-Light

Easy maintenance

P6.67-10mm

Fast installation

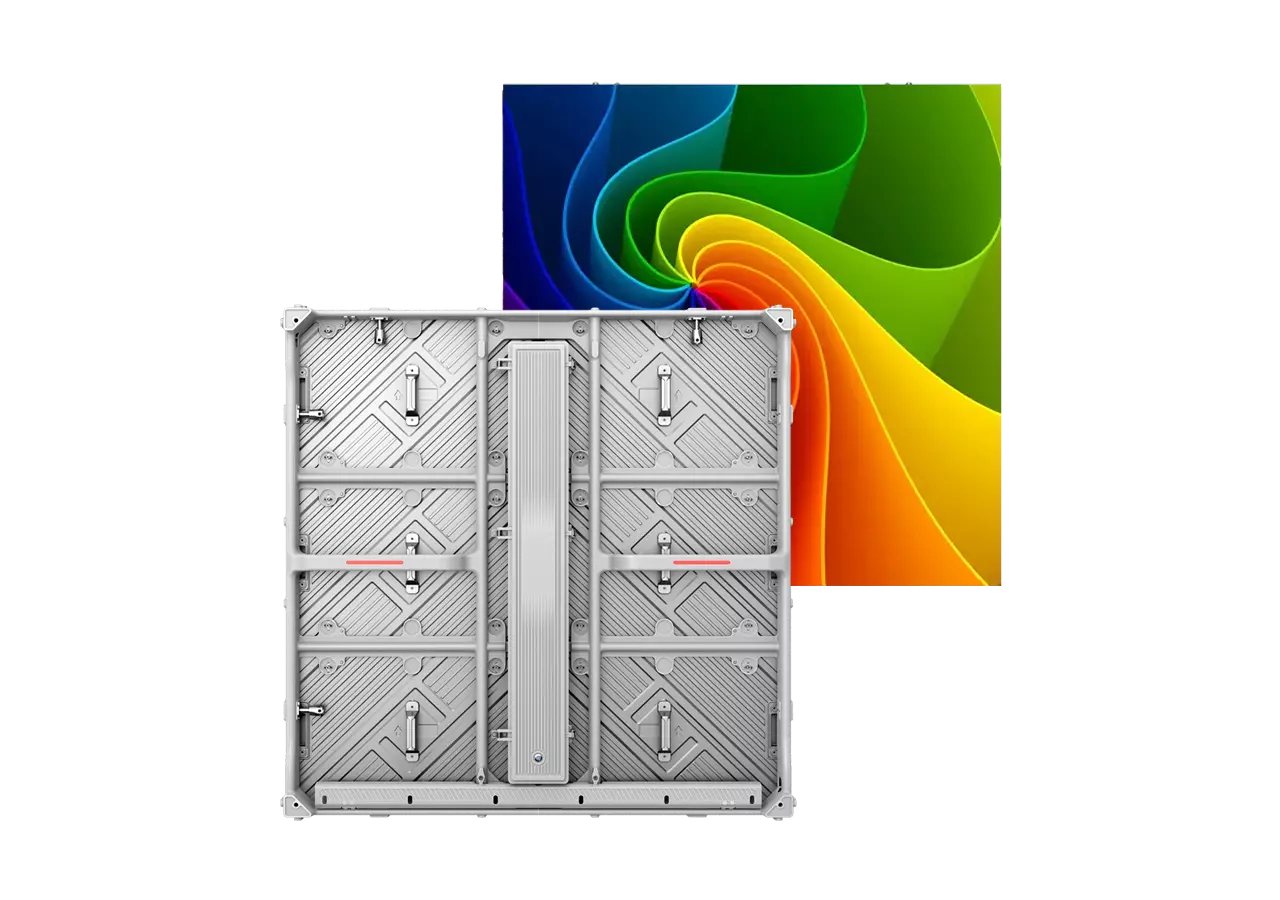

Aluminum Chassis Panel

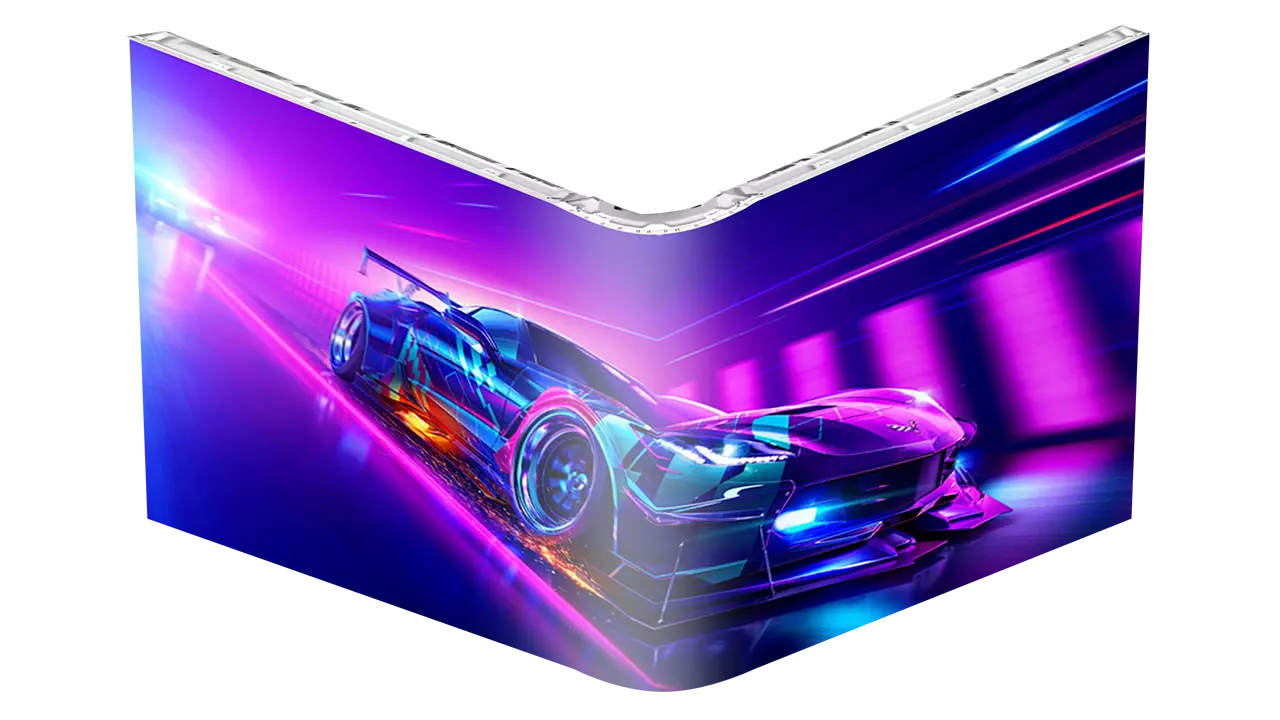

Excellent Curving Capabilities & R-Shaped cabinet for Perfect Seamless Cube

High Protective Performance

Aluminum material, high temperature durability, fast heat-dissipation.The whole product can Reach 5VB fireproofing level. Full sealed die-casting aluminum module chassis. Water proof connectors(between modules), Drain hole is designed at the bottom of the panel to prevent ponding.

Safety Harness Design

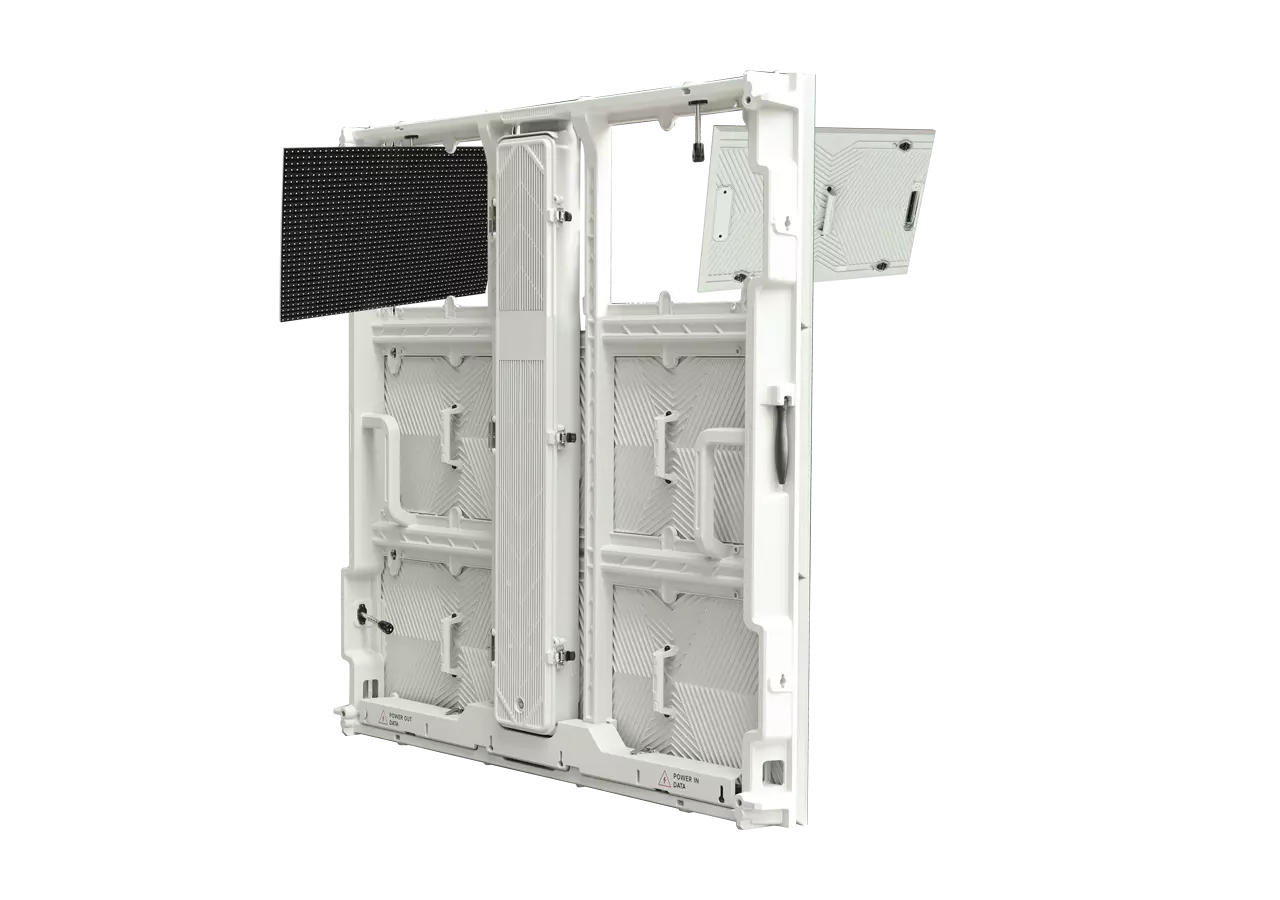

Each LED module is equipped with a safety harness to prevent the module from falling and hitting people.

Energy Saving LED Display
Parameter Table

A960 Specifcations
  Model A960 Series
  Pixel Pitch 6.67,8,10(SMD),10(DIP)mm
  Cabinet size 960x960x140mm
  Cabinet weight 28±0.5kg
  Brightness 6000-9000nit
  Color temperature 6500-8500K
  Refresh frequency 1920-3840HZ
 Working temperature -20~50℃
  Storage Temp/Humidity -30 - 60℃/10% - 60%
  Expected LED Lifetime (Max) 100,000 Hrs
  IP Rating IP65

Recycling, Environment and Economy

Die-casting aluminum chassis, recycle rate 90% for the whole product. Long lifetime, 30% Redundance while use 7000nits. Using 10000nits,3000nits can sustain 7000nits using for 5 years, Good heat dissipation performance
