Rolling LED Displays

Rolling Up Interactive LED Display

Innovative LED Display Products

LED Rolling Up Display is a new generation of innovative LED Display products, in addition to the traditional display, all the features and technical features, its excellent structure design makes it roll up like paper, it has the appearance of ultra-thin and ultra-light weight, is the ideal alternative to traditional display, suitable for all traditional display applications.

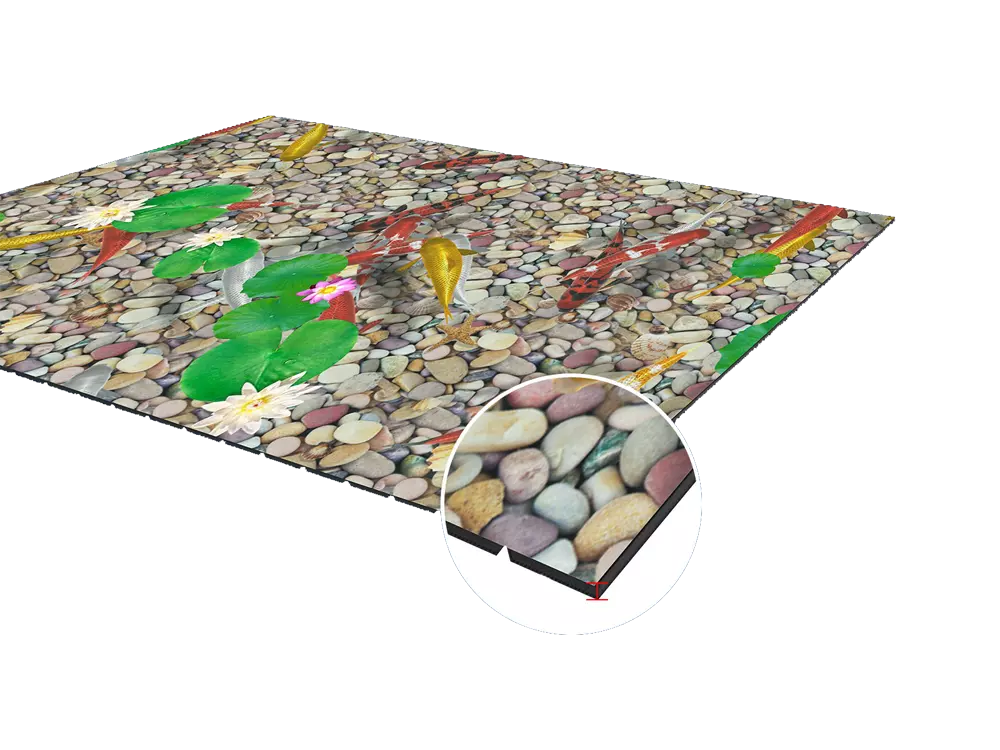

GOB LED Technology

Surface safty with IK10 anti-collision grade and IP65 waterproof grade, also with non-slip mat and anti-reflection. And high visual performance (with high contrast LED for uniform visual performance in black) are considered.

Factory in China

Ultra-Light

Easy maintenance

P0.78-3.91mm

Fast installation

Ultra-light and Ultra-thin

15 KG/Sqm weight and 10 mm thickness make easy to install and carry, wich can simplify the design of supporting structure to design better artistic effect.

Aluminum module case

Aluminum case adopts strething process, which make sure the accurate size and have the best heat dissipation from the LED.

Fast installation and easy maintenance

Its simple structure allows for easy installation and quick maintenance.

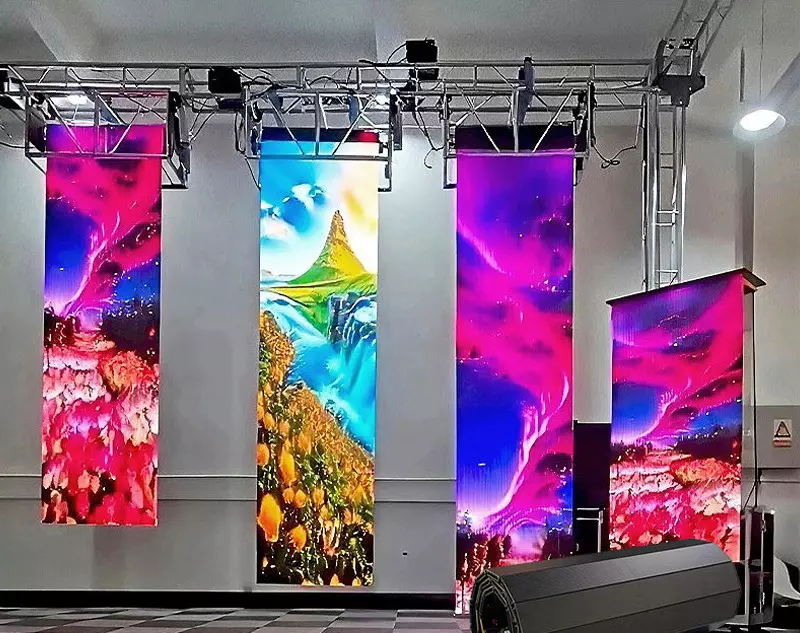

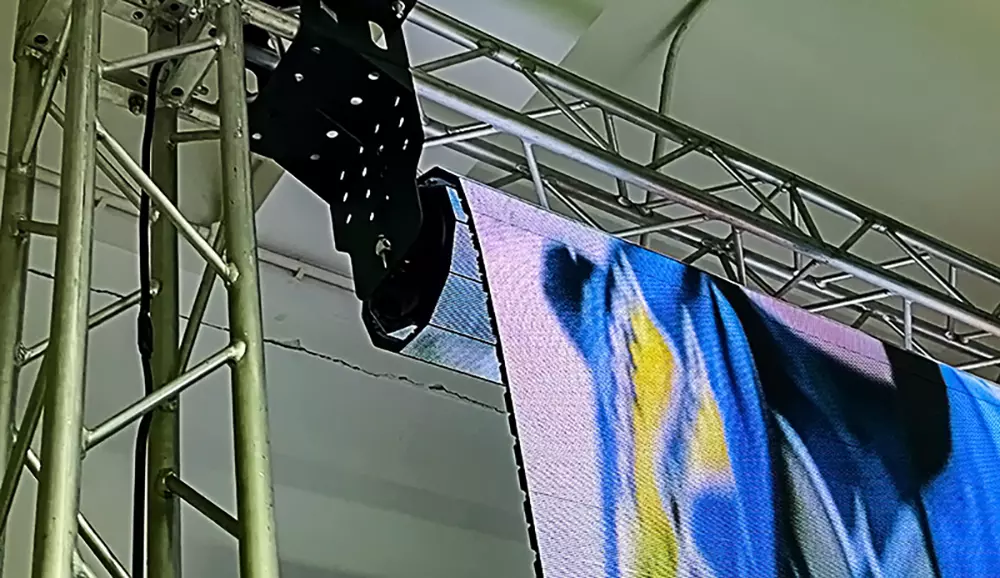

Rental Installation

  • Fixing hooks to truss;
  • Spread the rolling display unit;
  • Secure the hanging bar above each roll of screen;
  • Put the rolling display on the hook;
  • Splice the screen left and right using the quick locks on the hanging bar.

Low voltage input

Low voltage 24V/DC input for every unit screen.

Application Fields

Meeting Room,TV Studio,Exhibition Center,Could be rolled like a mat Cinema Shop, Store School

  Model No. R0.78 R097 R125 R156 R195 R26 R391
  Pixel Pitch(mm) 0.78mm 0.976mm 1.25mm 1.56mm 1.95mm 2.6mm 3.91mm
  LED Configuration SMD0606 SMD0606 SMD1010 SMD1010 SMD1010/1415 SMD1415/1515 SMD2121
  Pixel density(dots/m²) 1638,400 1048,576 640,000 409,600 262,144 147,456 65,536
  Module resolution(pixels) 640x80 512x64 400x50 320x40 256x32 192x24 128x16
  Brightness(cd/m²) 400 400 400 600 600 600 600
  Max power consumption(w) 570 540 450 510 480 480 480
  Avg power consumption(w) 190 180 150 170 160 160 160
  Scanning method 1/80s 1/64s 1/50s 1/40s 1/32s 1/24s 1/16s
  Moudle size（mm）
500x62.5x17nn(±0.5mm)

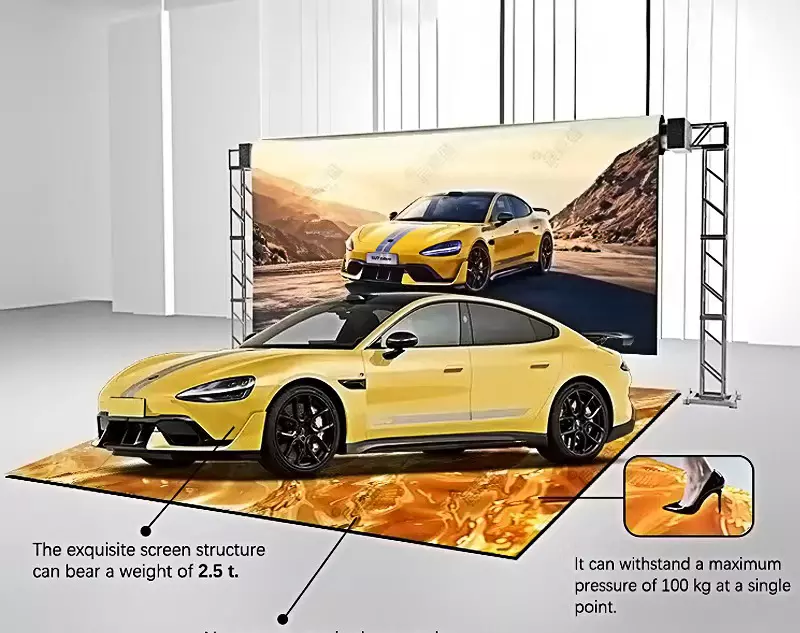

  Maximum load bearing
1000kg/m²
  Refresh rate
3840-7680Hz(optional)
  Protection level
IP54/IP21
  Installation method
Floor/Rolling/(optional）
