CLED Innovative 4K COB LED Display

Extraordinary Visual Effects

We adopt great PCB design and high quality LED material. With the high refresh rate(up to 3,840Hz) and gray scale(up to 14bits to 24bits) , the LED display can bring us amazing visual effects.

The light from our COB LED looks softer to our eyes. Meanwhile, when the COB LED screen is playing videos or images, the visual impact is more exquisite.

Longer Lifespan

Thanks to the flip chip technology wireless packaging technology, the heat dissipation for the LED is better, thus the LED works more secure. With the unique feature of the COB LED ( great reliability and high level surface protection) , the LED display ensures the perfect performance for more than 8 years.

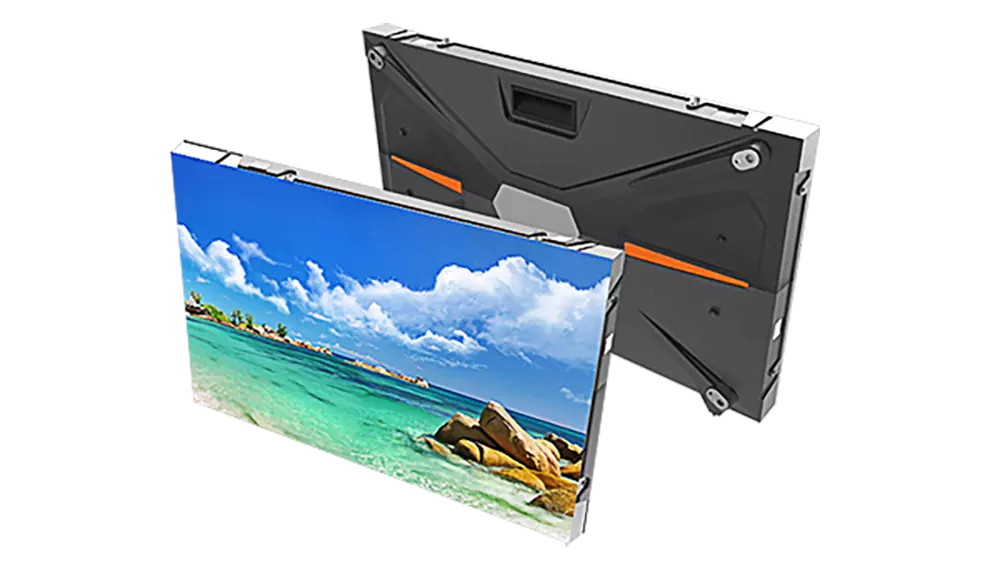

Great Cabinet Design

We adopt the precise die-casting aluminum design, so it is very light weight, which would bring great convenience when we do the installation or transportation. Meanwhile, all components including LED module, power box, receiving card and other accessories can be removed in the front, so it is fully front service design.

Item	P0.5	P0.6	P0.7	P0.8	P0.9	P1.2	P1.5
Pixel Pitch	0.59mm	0.63mm	0.78mm	0.83mm	0.937mm	1.25mm	1.5625mm
Led Type	COB	COB	COB	COB	COB	COB	COB
Module Resolution	254dots x 95dots	238dots x 89dots	192dots x 72dots	180dots x 67dots	320dots x 180dots	240dots x 135dots	192dots x 108dots
Driving Mode	/	/	/	/	1/45 Scan	1/45 Scan	1/54 Scan
Module Pixels	24,130 dots	21,182 dots	13,824 dots	12,060 dots	576,000 dots	32,400 dots	20,736 dots
Module Size	150mm x 56.25mm	150mm x 56.25mm	150mm x 56.25mm	300mm x 168.75mm	300mm x 168.75mm	300mm x 168.75mm	300mm x 168.75mm
Cabinet Size	600mm x 337.5mm x 60mm	600mm x 337.5mm x 60mm	600mm x 337.5mm x 60mm	600mm x 337.5mm x 60mm	600mm x 337.5mm x 60mm	600mm x 337.5mm x 60mm	600mm x 337.5mm x 60mm
Cabinet Resolution	1,016dots x 570dots	952dots x 534dots	768dots x 432dots	720dots x 402dots	640dots x 360dots	480dots x 270dots	384dots x 216dots
Pixel Density	2,872,737 dots/sqm	2,519,526 dots/sqm	1,634,655 dots/sqm	1,451,890 dots/sqm	1,137,779 dots/sqm	640,000 dots/sqm	409,600 dots/sqm
Minimum Viewing Distance	≥0.5 m	≥0.6 m	≥0.7 m	≥0.8 m	≥0.9 m	≥1.2 m	≥1.5 m
Brightness	450nits ~ 800nits	450nits ~ 800nits	450nits ~ 800nits	450nits ~ 800nits	450nits ~ 800nits	450nits ~ 800nits	450nits ~ 800nits
IP Grade	IP43	IP43	IP43	IP43	IP43	IP43	IP43
Refresh Rate	3840HZ	3840HZ	3840HZ	3840HZ	3840HZ	3840HZ	3840HZ
Gray Scale	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits	13bits ~ 24bits

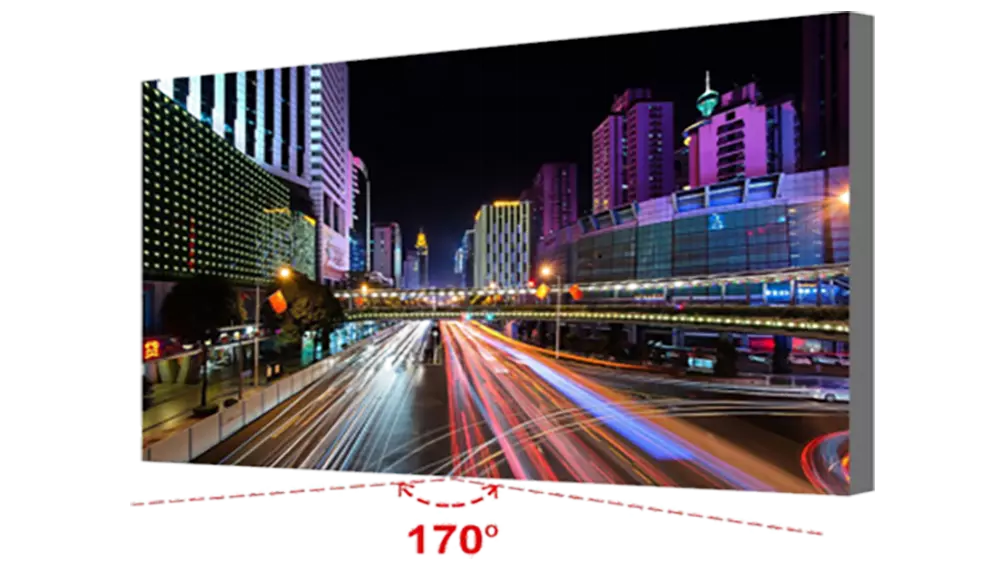

Viewing Angle	H:170°/ V:170°	H:170°/ V:170°	H:170°/ V:170°	H:170°/ V:170°	H:170°/ V:170°	H:170°/ V:170°	H:170°/ V:170°
Maxmum Power Consumption	350W/sqm	350W/sqm	350W/sqm	350W/sqm	350W/sqm	350W/sqm	350W/sqm
Average Power Consumption	100W/sqm	100W/sqm	100W/sqm	100W/sqm	100W/sqm	100W/sqm	100W/sqm
Input Voltage	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ	AC110V ~ AC220V @50/60HZ
Operating Temperature	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃	-20℃ ~ 65℃
Operating Humidity	10% ~ 90%	10% ~ 90%	10% ~ 90%	10% ~ 90%	10% ~ 90%	10% ~ 90%	10% ~ 90%
Cabinet Material	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Cabinet Weight	7.3 kg/panel	7.3 kg/panel	7.3 kg/panel	7.3 kg/panel	7.3 kg/panel	7.3 kg/panel	7.3 kg/panel
Operating System	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)	Windows(win7,Win8,Win10,etc)
Signal Source Compatibility	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc	DVI, HDMI1.3, DP1.2, SDI, HDMI2.0, etc
